Qualcomm IPQ9570 Wi-Fi 7 Multi-Link Operation (MLO)

 Qualcomm IPQ9570 Wi-Fi 7 Chipset OverviewPositioning and Application Scenarios

The Qualcomm IPQ9570 is a Wi-Fi 7 chipset designed for the mid-to-high-end market, targeting home routers, small business access points (APs), and IoT gateways. Compared to the flagship IPQ9574, the IPQ9570 focuses more on balancing performance and cost, making it suitable for budget-conscious deployments that still demand high performance.

Core Performance

• CPU Architecture: Equipped with a quad-core ARM Cortex-A73 running up to 2.2 GHz. Compared with the commonly used Cortex-A53 in lower-end solutions, the IPQ9570 offers significantly improved throughput and multi-tasking performance.

• Memory Support: Compatible with DDR4/LPDDR4, expandable up to several gigabytes, sufficient for complex networking scenarios.

Wireless Features (Wi-Fi 7)

• 320 MHz ultra-wide channels for higher data transmission rates.

• 4096-QAM modulation for enhanced signal capacity.

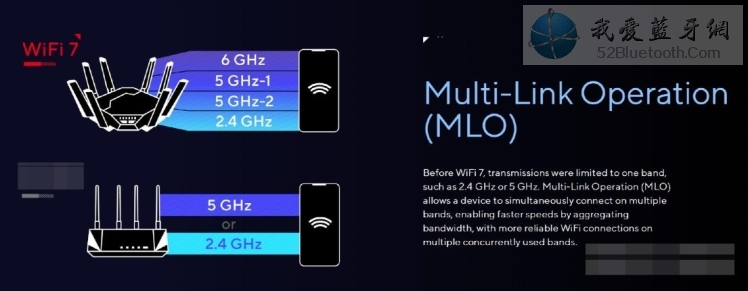

• Multi-Link Operation (MLO) to reduce latency and improve link reliability.

• Typically deployed as dual-band (2.4 GHz + 5 GHz), with some designs extendable to 6 GHz, though not a native tri-band solution.

I/O and Expansion Capabilities

• Multiple PCIe Gen3 lanes for extending with independent Wi-Fi modules or peripherals.

• High-speed networking interfaces, including 2.5G and 10G Ethernet (depending on implementation).

• USB 3.0 support, enabling storage connectivity or additional feature expansion.

Key Advantages

1. Strong performance: Cortex-A73 quad-core CPU delivers leading capability in the mid-to-high-end router market.

2. Full Wi-Fi 7 feature set: Covers 320 MHz, 4096-QAM, and MLO, enabling next-gen connectivity.

3. High cost-effectiveness: More affordable and power-efficient than the flagship IPQ9574, ideal for large-scale deployments.

4. Flexible expansion: PCIe, 2.5G/10G Ethernet, and USB 3.0 support allow versatile product designs.

Limitations and Considerations

• Frequency band limitations: Mostly dual-band, less flexible than the IPQ9574’s native tri-band design.

• Throughput constraints: Slightly weaker performance in enterprise-scale, high-concurrency, or wireless backhaul scenarios.

• Implementation dependency: Final performance depends on vendor choices in RF modules, antenna design, and firmware optimization.

Overall Evaluation

The IPQ9570 is a well-balanced Wi-Fi 7 chipset that delivers high performance at a competitive cost, making it ideal for home and SMB networking products requiring next-generation features. For deployments demanding tri-band coverage, ultra-high throughput, or enterprise backhaul, the flagship IPQ9574 remains the better choice.
